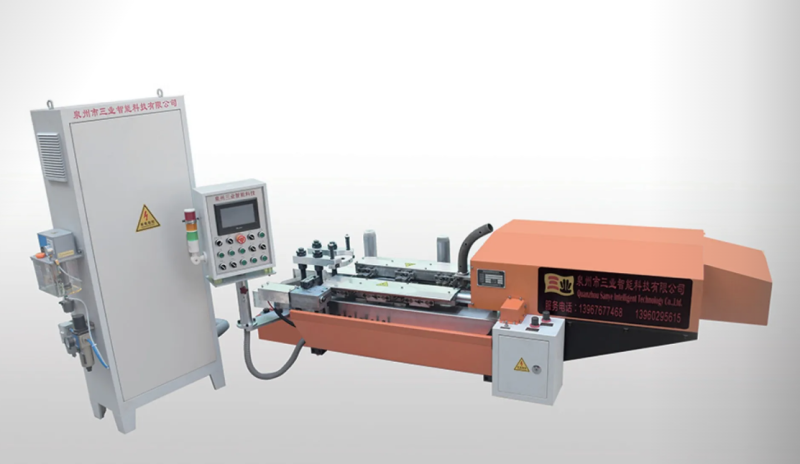

SY-K series Open stepping beam forging manipulator (Economy version)
Single head design, economical and low cost; Simple installation, wide vision, easy operation; CNC machining of Upper and lower templates,high precision of position layout and machining dimension; All the parts of the mould are heat treated to increase the service life Left and right displacement driven by a single servo precision screw,rigid connection, positioning fast and accurate; The absolute value angle encoder is used to read the punch angle (the manipulator and the punch crankshaft are absolutely synchronized), which ensures the accuracy of opening and closing of the clamp claw The servo system selects the driver which isolates the three-phase electrical input (eliminates the zero-line interference and ensures the positioning accuracy of the servo motor) The Machine Head and beam are all waterproof and dust-proof completely closed structure, and all moving joints are equipped with waterproof and dust-proof mechanism; This product uses the SANYE-JXS-4.0 industrial operating system, which is developed independently. The linkage between the executive components is flexible and accurate. Can identify the fault and alarm all line shutdown, are: feeding machine/if furnace material, feeding Machine/intermediate frequency/punch failure, the clamp claw of each working procedure can identify sticking punch, hanging bottom core,material not clamped, punching material not punched out, the clamp movement occurs during the interference, manipulator oil shortage, punch oil shortage, high frequency water shortage and so on.

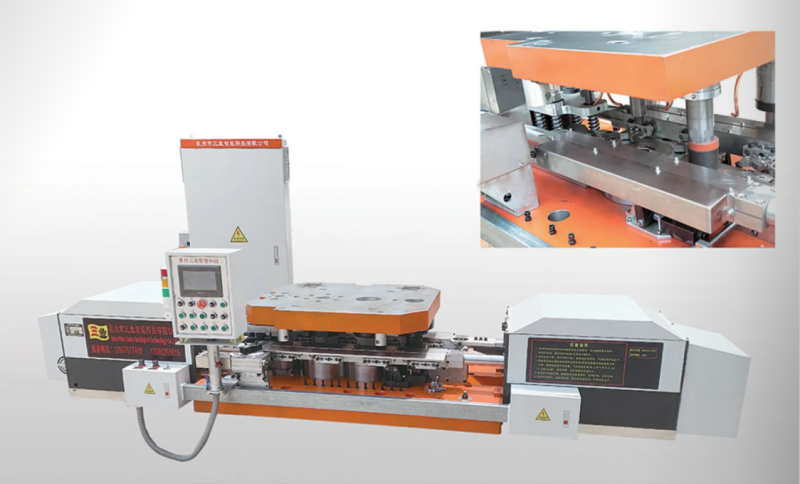

Open stepping beam forging manipulator (Standard edition,high standard edition)
Double head design, simple installation, wide field of view, easy operation; Upper and lower template overall CNC machining, position layout, high precision machining dimension; All molding parts are heat treated to improve service life;The left and right displacement is driven by double servo precision screw, rigid connection, fast and accurate positioning; Front and back clamp design, each claw opening and closing independent adjustment, easy adjustment. Fast and accurate positioning; The absolute Angle encoder is used to read the Angle of the punching machine (the manipulator and the punching machine crankshaft are absolutely synchronized) (to ensure the accuracy of the opening and closing of the claw); The servo system adopts the driver that isolates the three-phase electrical input (eliminates the interference of the neutral line and ensures the positioning accuracy of the servo motor); The head and beam are all waterproof and dust-proof completely closed structure, and all moving joints are equipped with waterproof and dust-proof mechanism; The product adopts the independently developed ANYE-JXS-4.0 industrial operating system, the linkage between the execution components is flexible and accurate. Can identify the prompt fault and alarm the shutdown of the whole line are: The feeding machine/intermediate frequency furace stuck material, the feeding machine/intermediate frequency/punch failure, the pliers of each process can identify the sticking punch, the bottom core, the material is not caught, the punching material is not out, and the pliers moving process Interference, manipulator oil shortage, punch oil shortage, high frequency water shortage and other faults occur.
Open stepping beam Forging Manipulator (custom version)
The overall appearance of the new design, orange, gray collocation, highlighting serious and cautious; Double head, double door design, more safe, wide field of view, easy to operate Upper and lower template overall CNC machining, position layout, high precision machining dimension; All molding parts are heat treated to improve service life;The left and right displacement is driven by double servo precision screw,rigid connection, fast and accurate positioning; Front and back clamp design, each claw opening and closing independent adjustment, easy adjustment. Fast and accurate positioning; The absolute Angle encoder is used to read the Angle of the punching machine (the manipulator and the punching machine crankshaft are absolutely synchronized) (to ensure the accuracy of the opening and closing of the claw); The servo system adopts the driver that isolates the three-phase electrical input (eliminates the interference of the neutral line and ensures the positioning accuracy of the servo motor); The head and beam are all waterproof and dust-proof completely closed structure, and all moving joints are equipped with waterproof and dust-proof mechanism; The product adopts the independently developed ANYE-JXS-4.0 industrial operating system, the linkage between the execution components is flexible and accurate. Can identify the prompt fault and alarm the shutdown of the whole line are: The feeding machine/intermediate frequency furnace stuck material, the feeding machine/intermediate frequency/punch failure, the pliers of each process can identify the sticking punch, the bottom core, the material is not caught, the punching material is not out, and the pliers moving process Interference, manipulator oil shortage, punch oil shortage, high frequency water shortage and other faults occur.

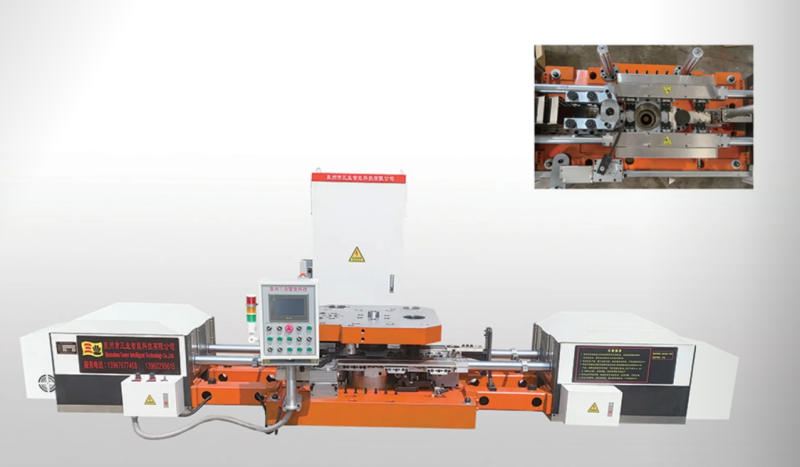

SY-B series closed stepping beam forging manipulator (standard version,high standard version)
The robot runs through the left and right Windows of the punch, easy to operate; Upper and lower template overall CNC machining, position layout, high precision machining dimension; All molding parts are heat treated to improve service life; The left and right displacement is driven by servo precision screw, rigid connection, fast and accurate positioning; Front and back clamp design, each claw opening and closing independent adjustment, easy adjustment. Fast and accurate positioning; The absolute Angle encoder is used to read the Angle of the punching machine (the manipulator and the punching machine crankshaft are absolutely synchronized) (to ensure the accuracy of the opening and closing of the claw); The servo system adopts the driver that isolates the three-phase electrical input (eliminates the interference of the neutral line and ensures the positioning accuracy of the servo motor); The head and beam are all waterproof and dust-proof completely closed structure, and all moving joints are equipped with waterproof and dust-proof mechanism; The product adopts the independently developed ANYE-JXS-4.0 industrial operating system, the linkage between the execution components is flexible and accurate. Can identify the prompt fault and alarm the shutdown of the whole line are: The feeding machine/intermediate frequency furnace stuck material, the feeding machine/intermediate frequency/punch failure, the pliers of each process can identify the sticking punch, the bottom core, the material is not caught, the punching material is not out, and the pliers moving process Interference, manipulator oil shortage, punch oil shortage, high frequency water shortage and other faults occur.

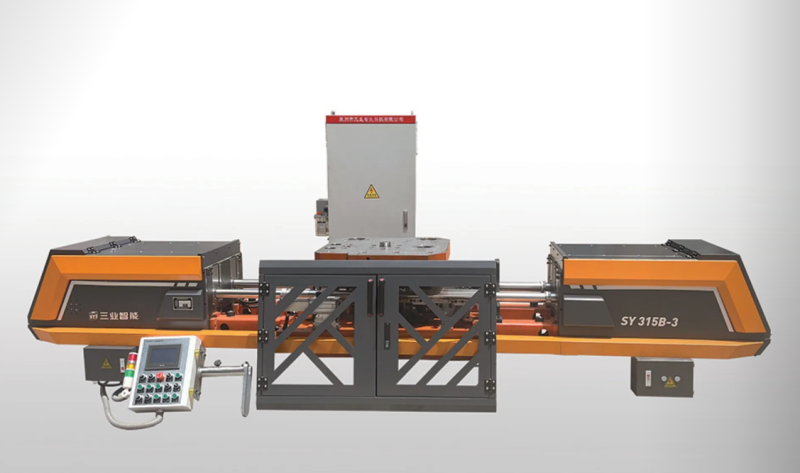

Closed step beam Forging Manipulator (custom version)
The robot runs through the left and right Windows of the punch, easy to operate; Upper and lower template overallCNC machining, position layout, high precision machining dimension; All molding parts are heat treated to improve service life; The left and right displacement is driven by servo precision screw, rigid connection, fast and accurate positioning; Front and back clamp design, each claw opening and closing independent adjustment, easy adjustment. Fast and accurate positioning; The absolute Angle encoder is used to read the Angle of the punching machine (the manipulator and the punching machine crankshaft are absolutely synchronized) (to ensure the accuracy of the opening and closing of the claw); The servo system adopts the driver that isolates the three-phase electrical input (eliminates the interference of the neutral line and ensures the positioning accuracy of the servo motor); The head and beam are all waterproof and dust-proof completely closed structure, and all moving joints are equipped with waterproof and dust-proof mechanism; The product adopts the independently developed ANYE-JXS-4.0 industrial operating system, the linkage between the execution components is flexible and accurate. Can identify the prompt fault and alarm the shutdown of the whole line are: The feeding machine/intermediate frequency furnace stuck material, the feeding machine/intermediate frequency/punch failure, the pliers of each process can identify the sticking punch, the bottom core, the material is not caught, the punching material is not out, and the pliers moving process Interference, manipulator oil shortage, punch oil shortage, high frequency water shortage and other faults occur.

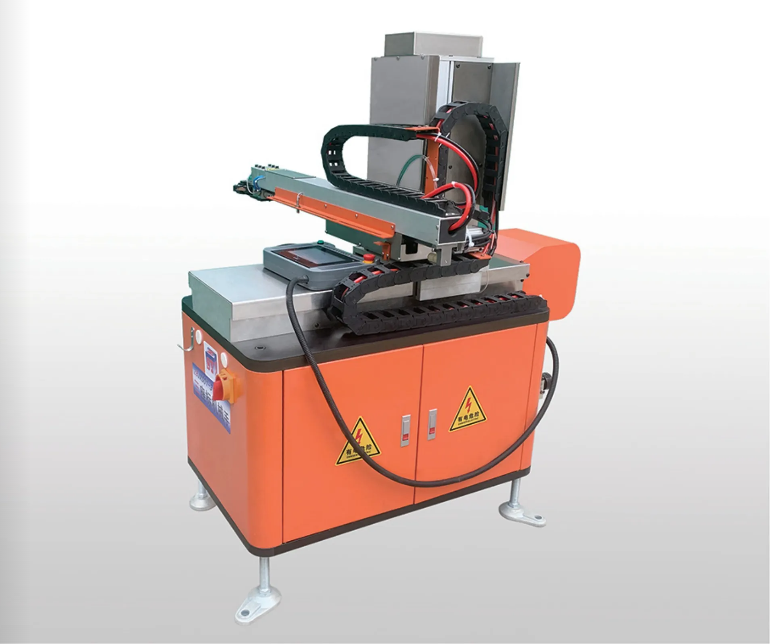

SY-ZBJXS03 series three-coordinate manipulator
adopts X, Y, Z two axis mark linear movement, easy to operate; Machining zero (part) of the whole machine adopts CNC machining, with high precision in position layout and processing dimension; Most of the moving parts of the machine are made of aluminum alloy, which is light in weight, stable and fast in movement; servo drive, fast and accurate positioning; With left and right clamp design, each claw opening and closing independent adjustment, easy adjustment. Fast and accurate positioning

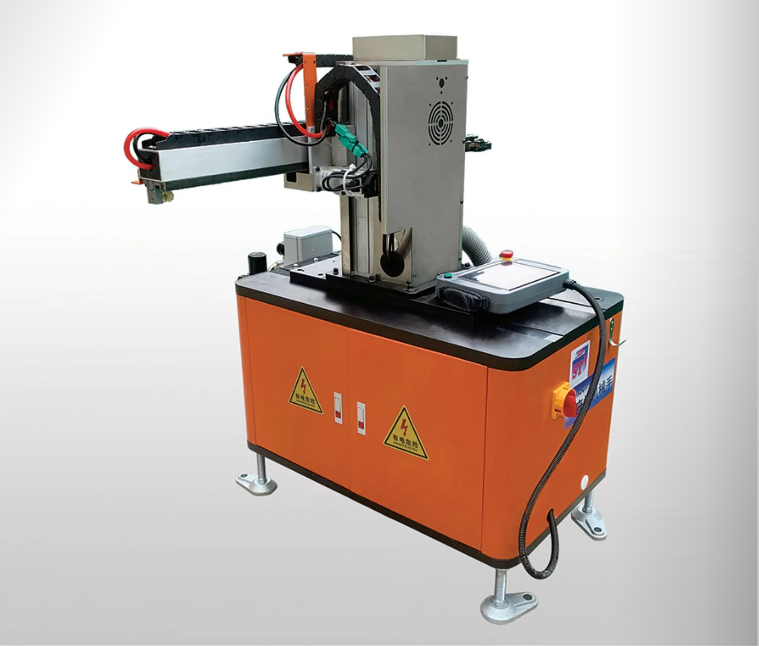

SY-ZBJXS02 series two-coordinate manipulator
Y, Z two axis mark linear movement, easy to operate; Machining zero (part) of the whole machine adopts CNC machining, high precision of position layout and processing dimension; Most of the moving parts of the whole machine are made of aluminum alloy, which is light in quality and smooth and fast in movement; Servo drive, fast and accurate positioning; The left and right clamp design, each claw opening and closing independent adjustment, easy adjustment. Fast and accurate positioning;
