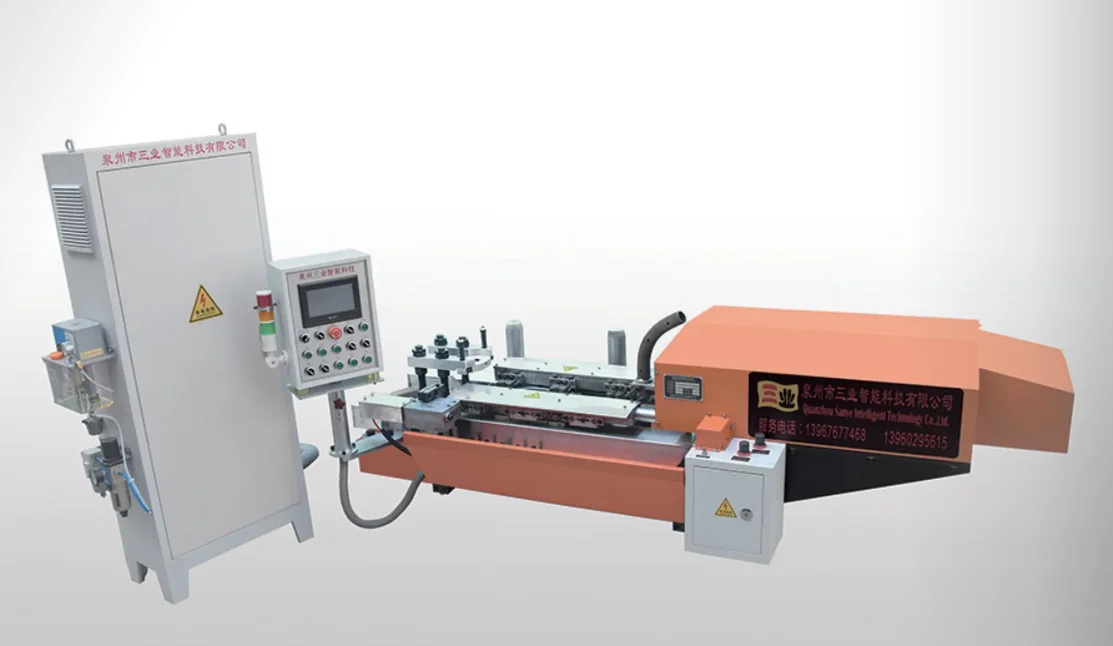

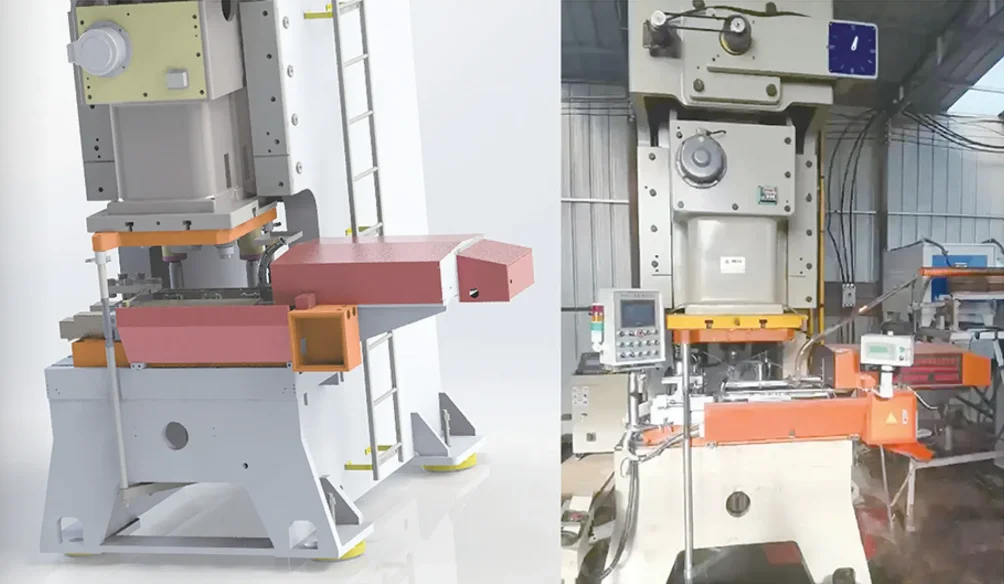

SY-K series Open stepping beam forging manipulator (Economy version)

Single head design, economical and low cost;
Simple installation, wide vision, easy operation;
CNC machining of Upper and lower templates,high precision of position layout and machining dimension;
All the parts of the mould are heat treated to increase the service life
Left and right displacement driven by a single servo precision screw,rigid connection, positioning fast and accurate;
The absolute value angle encoder is used to read the punch angle (the manipulator and the punch crankshaft are absolutely synchronized),
which ensures the accuracy of opening and closing of the clamp claw
The servo system selects the driver which isolates the three-phase electrical input (eliminates the zero-line interference and ensures the
positioning accuracy of the servo motor)
The Machine Head and beam are all waterproof and dust-proof completely closed structure, and all moving joints are equipped with waterproof and dust-proof mechanism;
This product uses the SANYE-JXS-4.0 industrial operating system, which is developed independently. The linkage between the executive components
is flexible and accurate. Can identify the fault and alarm all line shutdown, are: feeding machine/if furnace material, feeding Machine/intermediate
frequency/punch failure, the clamp claw of each working procedure can identify sticking punch, hanging bottom core,material not clamped, punching
material not punched out, the clamp movement occurs during the interference, manipulator oil shortage, punch oil shortage, high frequency water shortage
and so on.
