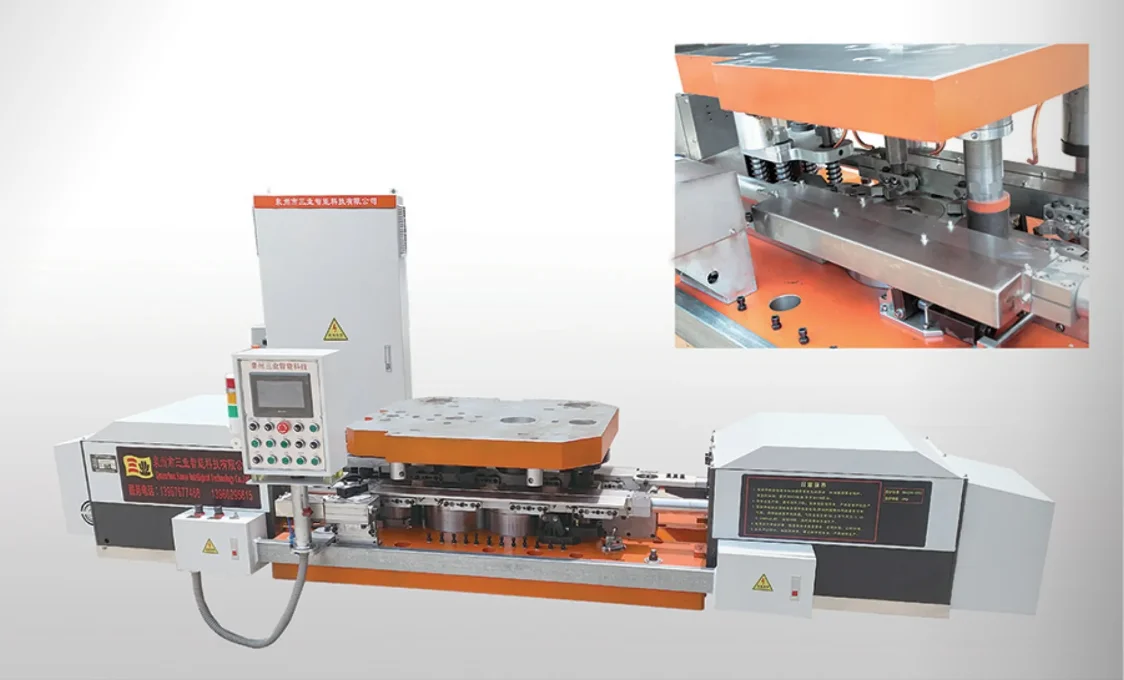

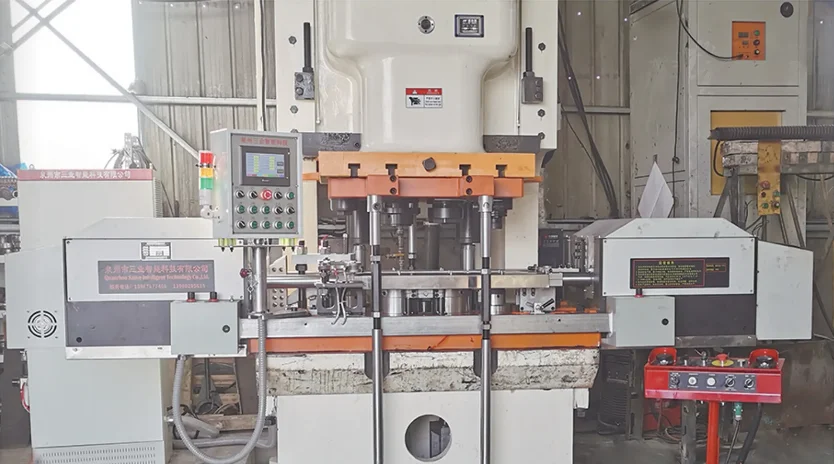

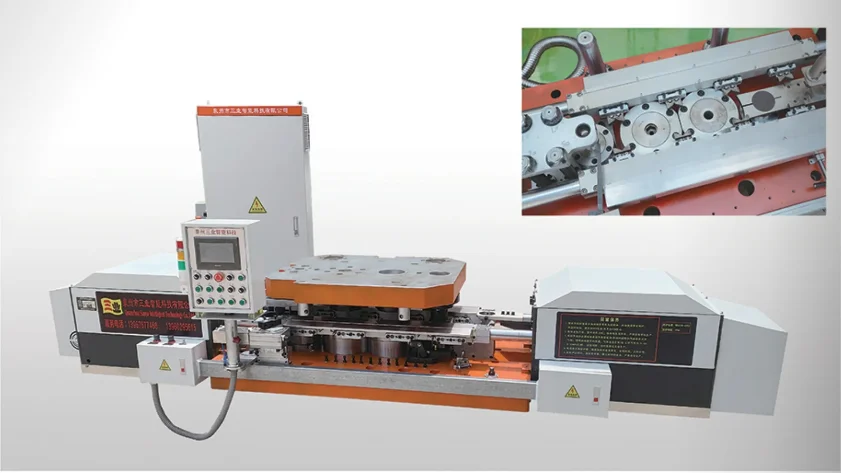

Open stepping beam forging manipulator (Standard edition,high standard edition)

Double head design, simple installation, wide field of view, easy operation;
Upper and lower template overall CNC machining, position layout, high precision machining dimension;
All molding parts are heat treated to improve service life;The left and right displacement is driven by double servo precision screw, rigid connection,
fast and accurate positioning;

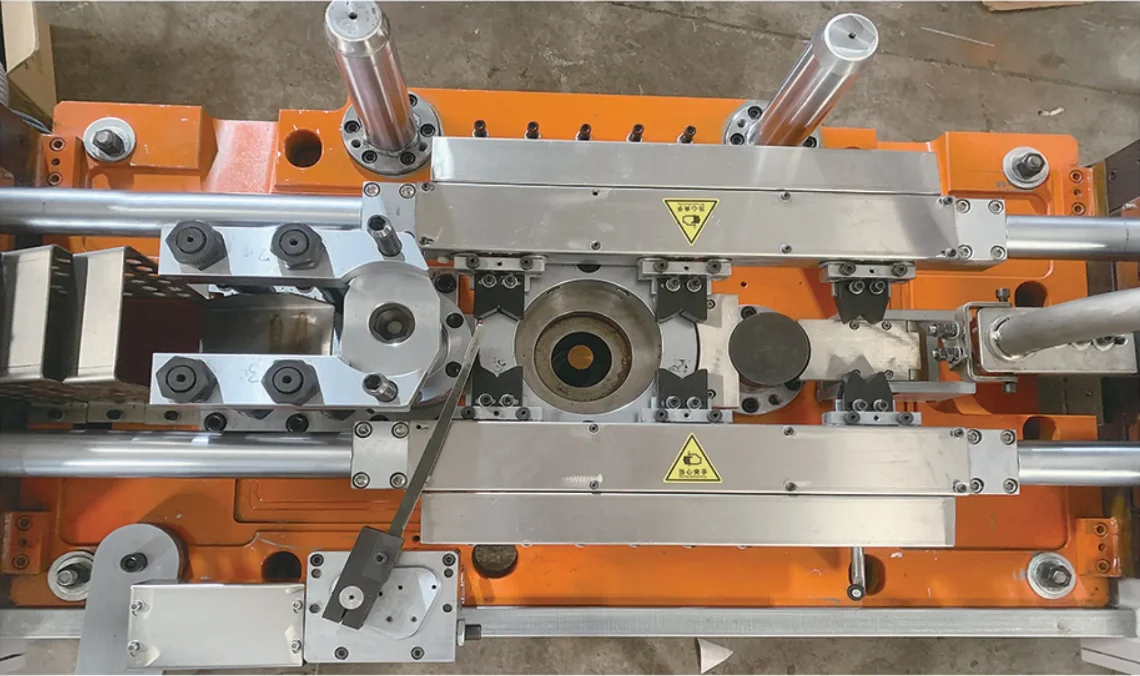

Front and back clamp design, each claw opening and closing independent adjustment, easy adjustment. Fast and accurate positioning;
The absolute Angle encoder is used to read the Angle of the punching machine (the manipulator and the punching machine crankshaft are absolutely
synchronized) (to ensure the accuracy of the opening and closing of the claw);
The servo system adopts the driver that isolates the three-phase electrical input (eliminates the interference of the neutral line and ensures the positioning
accuracy of the servo motor);
The head and beam are all waterproof and dust-proof completely closed structure, and all moving joints are equipped with waterproof and dust-proof
mechanism;
The product adopts the independently developed ANYE-JXS-4.0 industrial operating system, the linkage between the execution components is flexible
and accurate. Can identify the prompt fault and alarm the shutdown of the whole line are: The feeding machine/intermediate frequency furace stuck
material, the feeding machine/intermediate frequency/punch failure, the pliers of each process can identify the sticking punch, the bottom core, the
material is not caught, the punching material is not out, and the pliers moving process Interference, manipulator oil shortage, punch oil shortage, high
frequency water shortage and other faults occur.
